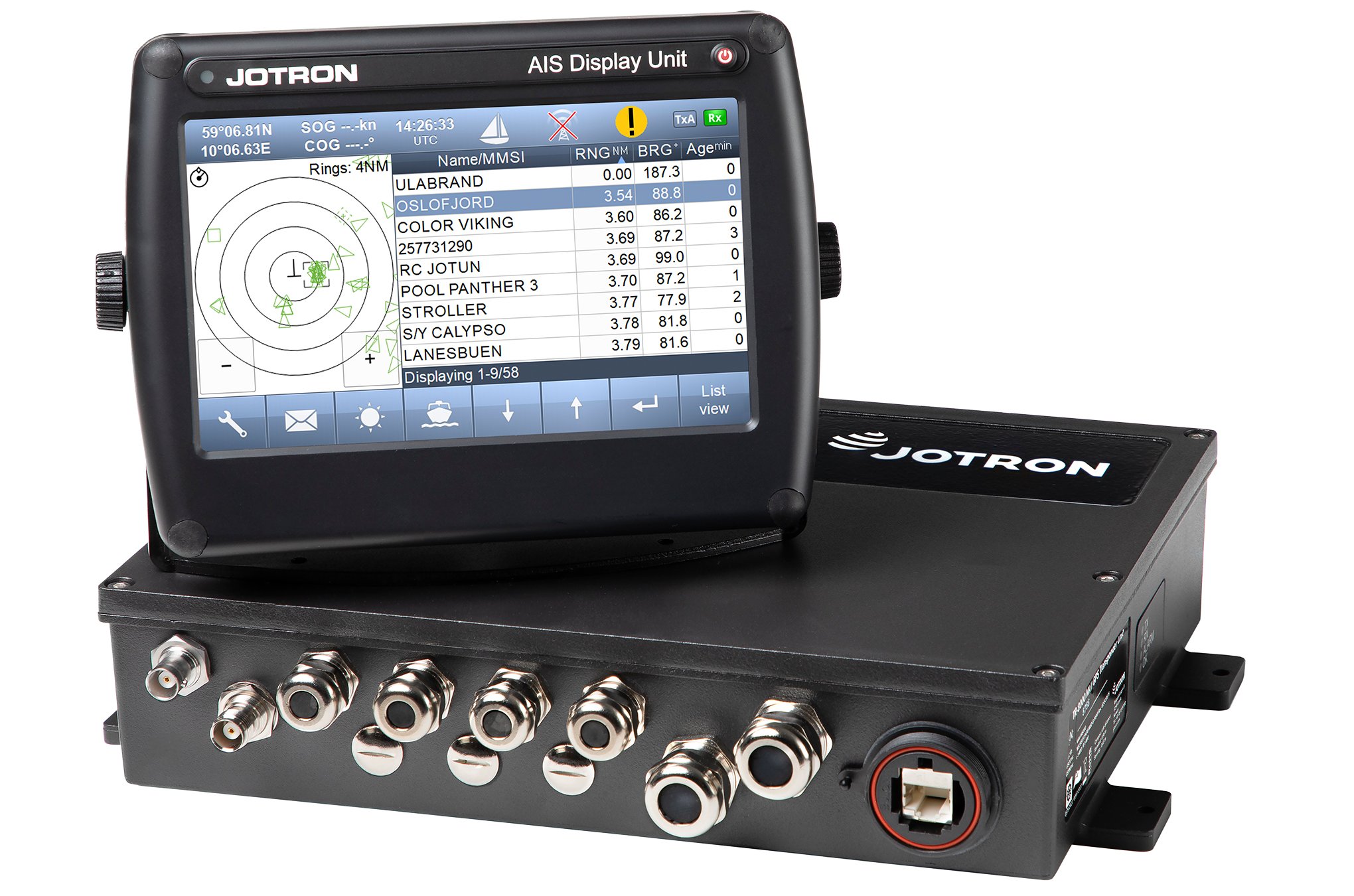

Tron AIS TR-8000 MkII complete IMO package
Part Number: 103670
The Tron AIS TR-8000 MkII is a next-generation Automatic Identification System (AIS) Class A . This maritime tracking system automatically exchanges vessel information to improve safety and navigation.
The Tron AIS TR-8000 MkII complies with the latest Bridge Alert Management (BAM) standards and supports blue sign information transmissions for safe navigation on European inland waterways. Certified to the latest AIS Class A standard, it ensures full regulatory compliance. Designed with flexibility in mind, the system features compact, separate display and transceiver units, making it easy to install or retrofit on a wide range of vessels.
Automatic Identification System (AIS)
I addition to the Tron AIS TR-8000 MkII Class A, the Tron AIS TR-8000 MkII Class A IMO package includes:

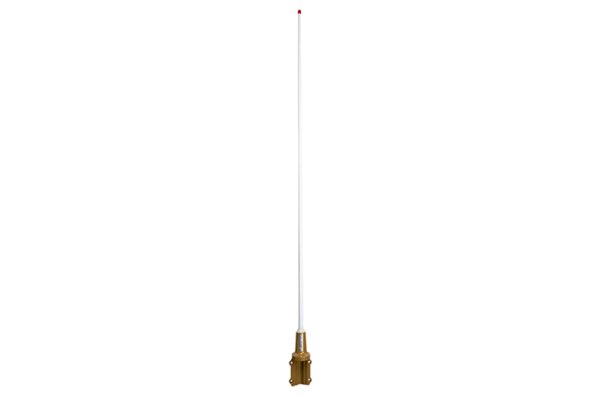

- 82484 Antenna Procom CXL 2-1LW/H 0 dBd

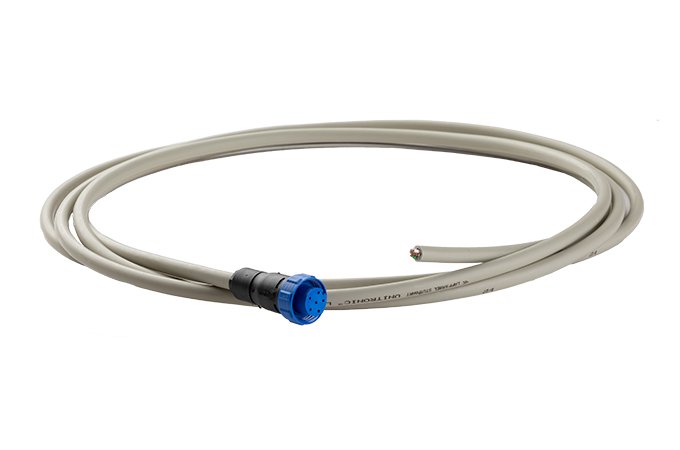

- 86870 Pilot cable for TR-8000 display
Features
- Complies with new requirements for Bridge Alert Management (IEC 62923-1:201, IEC 62923-2:2018)
- Complies with the latest AIS standard (IEC 61993-2:2018)
- Approved for inland waterway installations
- FCC, MED and MER compliant and approved by ANATEL
- 7’’ high-resolution touch screen, IP54
- Dual display
- External interface cables are connected inside transponder unit
- Simple installation and easy retrofit
Date
Name
Size
Download
Documentation type
Showing 21 documents
Date
Type
Name
Size
Download
19.05.25
Firmware
1989 KB
Restricted document, request access18.01.22
PC software
Secondary display software Tron AIS TR-8000 MkII (partners only)
6149 KB
Restricted document, request access19.05.25
Service bulletin
SB01-2025 Tron AIS TR-8000 MkII recommended FW upgrade Transponder (partners only)
145 KB
Restricted document, request access03.02.23
Technical bulletin
TB01-2023 Tron TR-8000 hardware and firmware compatibility (MkI vs MkII)
203 KB
Download document18.01.22
Technical bulletin
TB02-2022 Tron AIS TR-8000 compatibility (MkI vs MkII)
177 KB
Download document
