SKIPPER Retrofit plate for GDS101/GDS102/EML224N and DL850
Part Number: KIT-RETROPLATE-001

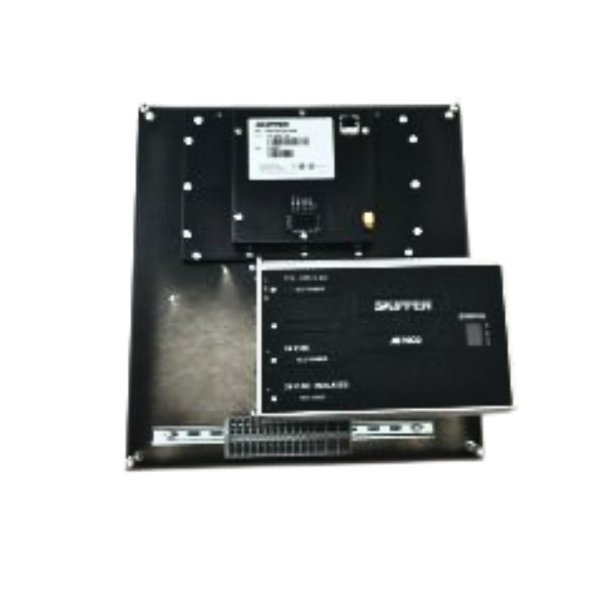

Retrofit plate for replacing GDS101, GDS102, EML224N or DL850 with a CU-M001-XX, 9” display. Will fit with the same cut-out dimensions. JB70 may be installed on the backside. Applicable for ESN100, ESN200, DL2, and DL21.
Features
- Retrofit plate for GDS101, GDS102, EML224N and DL850
- Will fit with the same cut-out dimensions
- JB70 may be installed on the backside
| Product: | Retrofit plate |
| Part Number: | KIT-RETROPLATE-001 |
| When replacing: |
|
| To be used with: | CU-M001-XX display |
| Mounting format: | Panel cut out - 304x324 mm |
| Mounting: | All needed screws and accessories are included |
| Service: | Available in most major harbours, world-wide through extensive dealer network |
