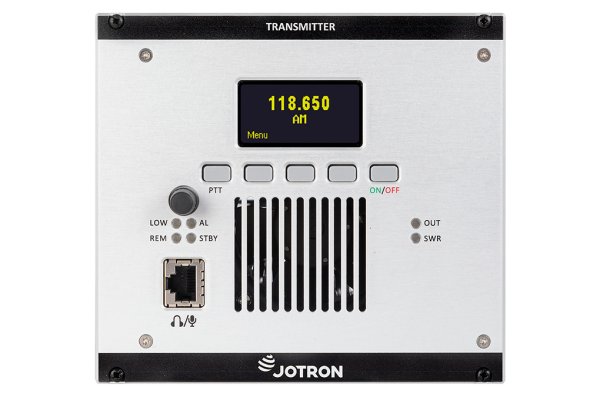

TA-7650 VHF AM Digital Multimode Transmitter 50W
Part Number: 84000C
The 7000 series comprises the TR-7750 Transceiver, the RA-7203 Receiver and the TA-7650 Transmitter. The receiver and transmitter use the most powerful digital signal processors to perform the intermediate frequency (IF) and the audio frequency (AF) filtering.
- Multi/single channel VHF/AM transmitter in 19″ sub-rack
- 3U high
- 99 channel fast recall store
- AM voice
- 25 and 8.33 kHz channel spacing
- 118-137 MHz. LAN ( SNMP ), RS-232 or RS-485 serial interface,
full digital control and diagnostics - Internal in-band interface
- Operates from AC mains with auto fail to 24V DC
- Power supply is included
- Option: Internal in-band interface
